3 axles 20'/40' Flatbed Container  Semi Trailer
3 axles 20'/40' Flatbed Container  Semi Trailer
3 axles 20'/40' Flatbed Container  Semi Trailer
3 axles 20'/40' Flatbed Container  Semi Trailer
3 axles 20'/40' Flatbed Container  Semi Trailer

3 axles 20'/40' Flatbed Container Semi Trailer

Unit Price: USD 1000 / Set/Sets
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 40 Days

Contact Now Add to Basket

Basic Info

    Model No.: Sinotruk

    Type: Flatbed Semi Trailer

    Axle: Fuwa, 13t

    Tyre: 12.00R20

    Body Material: Carbon Steel

    Loading Capacity: 50T

    Loading: 20'/40' Container

Additional Info

    Packaging: nude, waxed on deck

    Productivity: 100 units per week

    Brand: Sinotruk

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 100 units per week

    Certificate: ISO CCC

    Port: Tianjin,Qingdao,Shanghai

Product Description

Main performance:

No. of axle: 3 axle

Axle Brand: CIMC/ FUWA/ STR 13Ton

Tare Weight: 72000kg

Payload: 50000kg

Dimension: 13000mmx2566mmx1500mm

Suspension: FUWA/ STR Brand

Leaf Spring: 8-piece

Floor: 3mm steel sheet

Trailer pin: 50#/ 90# JOST

Outrigger: JOST-28Ton

Tire: 12.00-20/ 12.00R20/ 12R22.5

Twist Lock: 12 ISO twist lock for 1* 20ft container, 2* 20 ft container, 1*40 ft container

Accessories: One standard tool box

FEATURES:

l Steel constructions: All chassis adopts the high-tensile steel

2 Running system: Axles and suspensions system are complied

3 Comply with the international standards

4 Brake system: Adopt the international brands

5 Electric system: China famous brands;

6 Painting: Zinc-rich primer and modified urethane topcoat as customers` choices

Tri-Axle 20ft 40ft Flatbed Container Transport Truck Semi Trailer Price with Container Lock

Specification:

Trailer Model

3 Axle Flatbed Container Trailer

Model Number

SCD9400TJZ

Function

Carry 1*40ft or 2*20ft container or other stuff

Overall Dimension

(Lx W x H)(mm)

12500*2500*1550

Tare Weight(KG)

6350

Loading Weight( KG)

40000

Axle Brand

13 Tons FUWA / BPW

Axle Number

Three

Wheelbase(mm)

7450+1310+1310

Suspension system

Leaf Spring Suspension 10/10/10

Material of Main beam

The height of the beam is 500 mm, upper plate is 14mm,

down plate is 16mm, middle plate is 8mm.

Platform plate

3mm Diamond plate

Container Twist Locker

12pcs

Tire Type and quantity

12R22.5 12units Triangle

Traction Pin

50MM or 90MM JOST

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Landing Gear

28ton standard

Brake system

Dual Line braking system, Webco ABS.

Brake air chamber

Two double and two single chamber

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer`s requirement

Color

White, Yellow, Black or as your requirements

Painting

Color as customer`s requirement

Packing

NUDE, Polish with wax before shipping

trailer


The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY.
Truck series:

1. dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( 55024933, 55018915, 54937200, 54918183, 54917771, 54916836, water tanker and oil tanker)
4. mixer trucks and Concrete Pump Truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T Mine Dump Truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road Truck Crane , Truck Mounted Crane)
9. Special Trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck Spare Parts ( howo, howo A7, golden prince all series trucks parts supplying)

Machine series:

1.Wheel Loader,Backhoe loder, brick making machine

2.Roller,

3.Motor Grader,

4.Bulldozer,

5.Excavator,

6.Crane(truck crane,Crawler Crane,truck mounted crane,self erecting crane),

7,forklift and 45t contain reach stacker

8,paver and so on

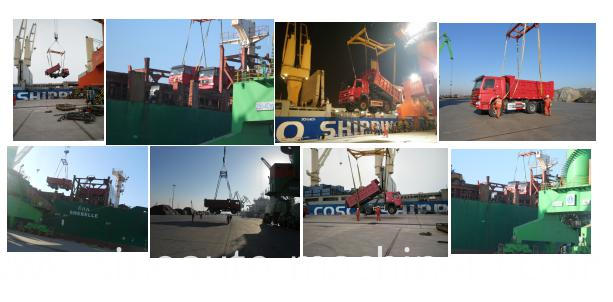

Our trucks and machinery export photos:

Our trucks and machinery for export


our trucks and machinery shipped on board

Looking for ideal Flatbed Container Semi Trailer Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Sinotruk Semi Trailer are quality guaranteed. We are China Origin Factory of Low Bed Semi Trailer. If you have any question, please feel free to contact us.
